POWER RANGE

SUB-15A or SUB-15P

(A) 15" Active Subwoofer • (P) 15" Passive Subwoofer

MultiPurpose Subwoofer with Profesional 15" transducer • Wood Construction • Active or Passive Model • gray or black color • 450/900WRMS • 100,5dB (1W/1m) • 52 to 200Hz (-3dB)

The « SUB-15 » subwoofers belonging to the « POWER » range are made to provide reinforcement in the sub-bass spectrum (<200Hz). They are available in standard version with passive filtering (suffix P) or amplified with electronic filtering (suffix A). In the standard version, they are manufactured using 18mm MDF panels (for static installations), on the other hand, in the « REINFORCED » version they are manufactured using birch 18mm multiplex panels (for mobile installations).

Loading 3D module (360° rotation & zoom)

1/7

2/7

3/7

4/7

5/7

6/7

7/7

❮ ❯

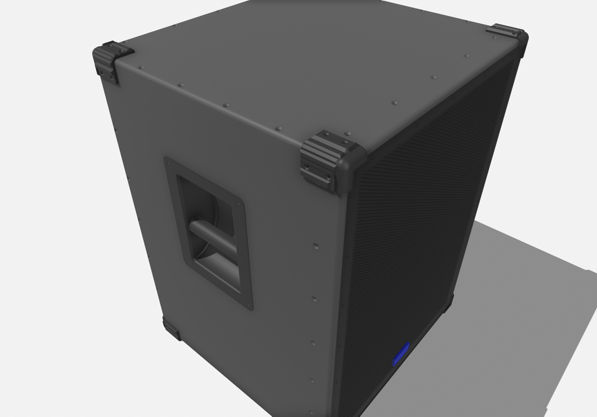

SUB-15 (handle and corner reinforcement)

SPECIFICATIONS

Speaker Type

Product Family

Tweeter

HF Transducer

Midrange

MF Transducer

Woofer

LF Transducer

Powered or Passive

Power Handling (Continuous / Peak)

Recommended Amplifier

Nominal Impedance

Frequency Response (-3 dB)

SPL/1m (135WRMS)

Axial Sensitivity (SPL, 1 W @ 1 m)

Crossover Frequency

Connector Type

Selector Type

Enclosure Material

Protection Grid

Recommended Electronic Filter

Height

Width

Depth

Weight Net

Shipping Weight

Subwoofer, one way

POWER

- - -

381 mm (15inch)

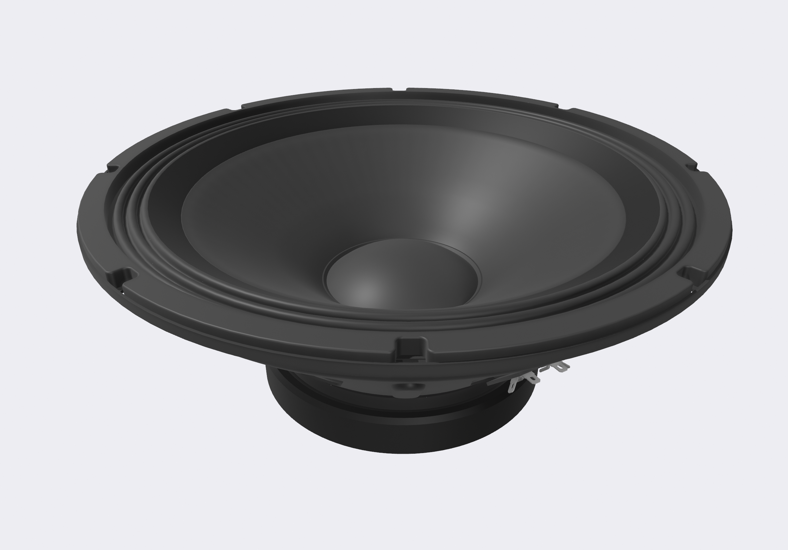

Eminence KAPPA-15 series

SUB-15A (Powered) or SUB-15P (Passive)

450W / 900W

600WRMS 8Ω

8Ω

52 Hz - 200 Hz (Full Space Measurement)

122dB

99dB (Full Space Measurement)

200 Hz

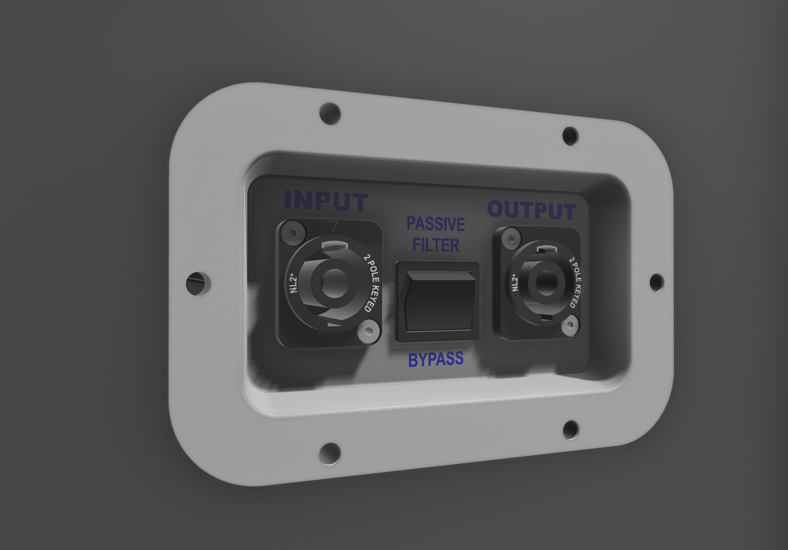

Dual NL2

SUB-15P « Bypass Switch for Inside Crossover »

18 mm MDF

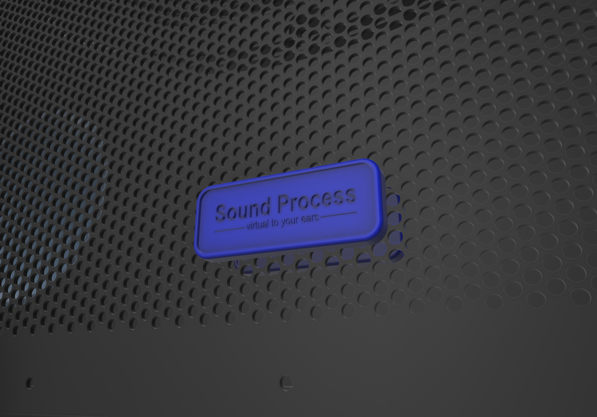

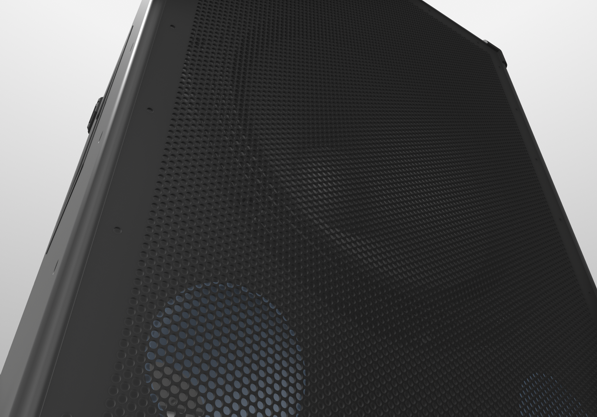

Removable perforated grid in 2mm thick steel, with black powdercoat

180Hz 24dB Low-Pas frequency for SUB-15P

621mm (24.45")

468mm (18.43")

441mm (17.36")

N.C.

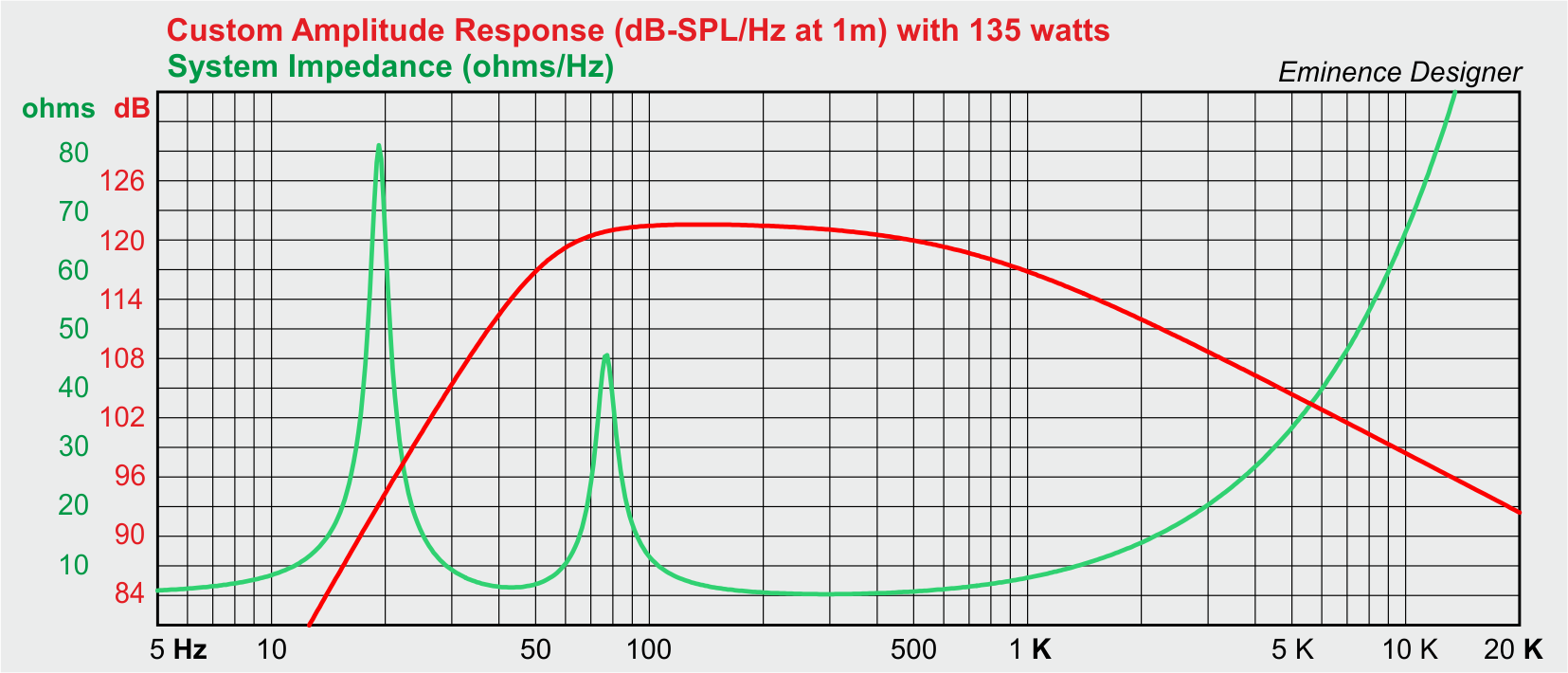

frequency response and impedance curve
